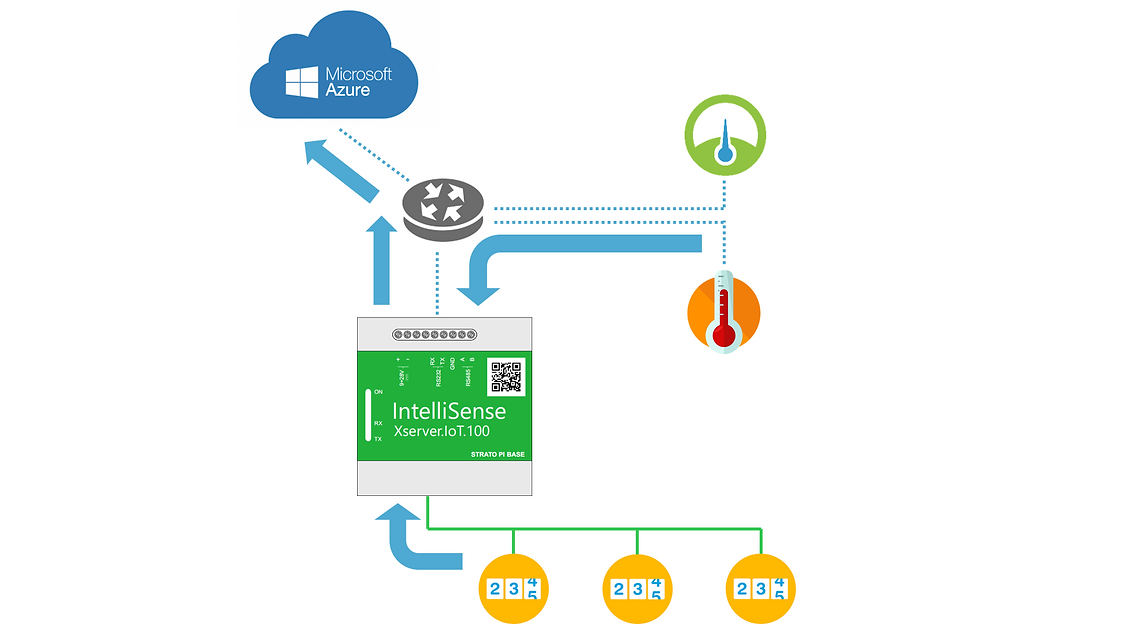

IoT device (Xserver.IoT.100) connects to an Internet cloud (Microsoft Azure) service

Industry meters connect to Cloud

If the cloud connection is not available, the IoT device stores data into the onboard storage (SD Card).

IoT Hub     Machine learning       Database

- Interval log  (fastest 1 second, typical setting is 1 minute or 15 minutes)

- Change of value log

- Alarm log

- Event log (fails and status of the Xserver.IoT device)

MQTT, AMQP

RS485 Modbus RTU

External application

Electrical meters

Solution to the application:  Smart Factory (Automotive, Food and beverage, Pharmaceutical), Smart City (Office blocks, Logistic centers), Smart Utility (Electricity, Gas)

Modbus Devices RS485 & Ethernet (Electrical meters, Heat meters, etc.) are connected by Xserver.IoT to Cloud service

Heat and Temperature meters to Azure

If the cloud connection is not available, the IoT device stores data into the onboard storage (SD Card).

Electrical meters

Heat meter

Temperature meter

Modbus TCP/IP

Ethernet Switch

RS485 Modbus RTU

IoT device (Xserver.IoT.100) logs data of the Modbus devices to the local SQL Server

Meters log to local database

If the SQL connection is not available, the IoT device stores data into the onboard storage (SD Card).

Local SQL Server

database

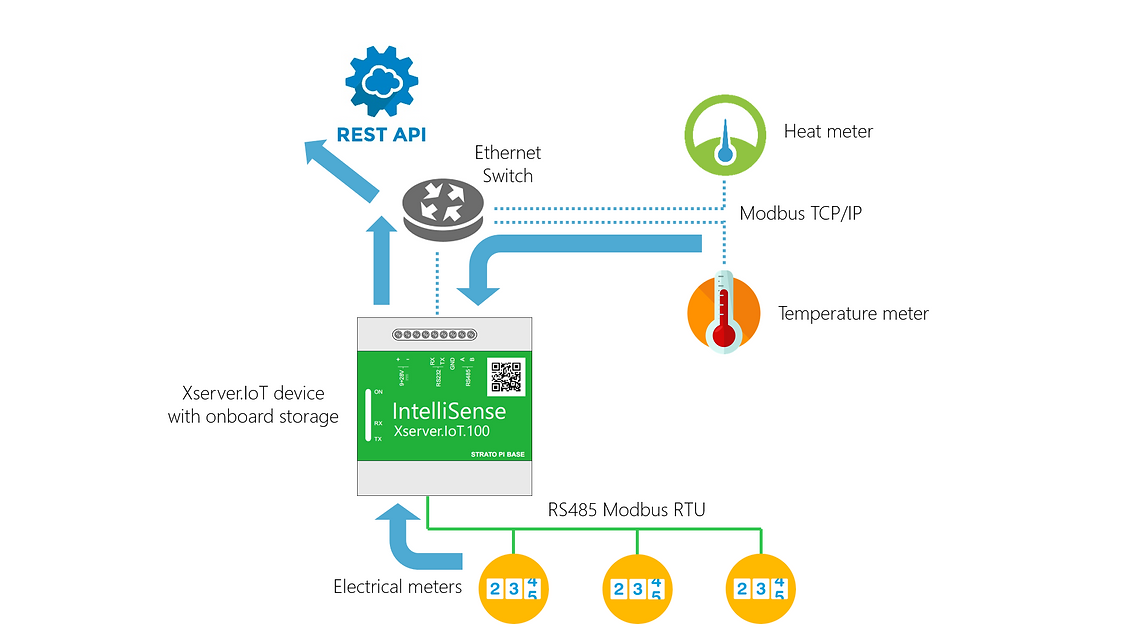

IoT device (Xserver.IoT.100) communicates with corporate system(s) on REST API interface

IoT devices connec to EMS & BMS

EMS, BMS,

ERP, MES system

Xserver.IoT.100 provides solution to Industry 4.0 application

Industry 4.0 data collection by IoT devices

Start & Stop, number of products are logged to the Cloud

Xserver.IoT.100 provides solution to Energy Management (ISO 50001) application

ISO 50001 Energy Management
